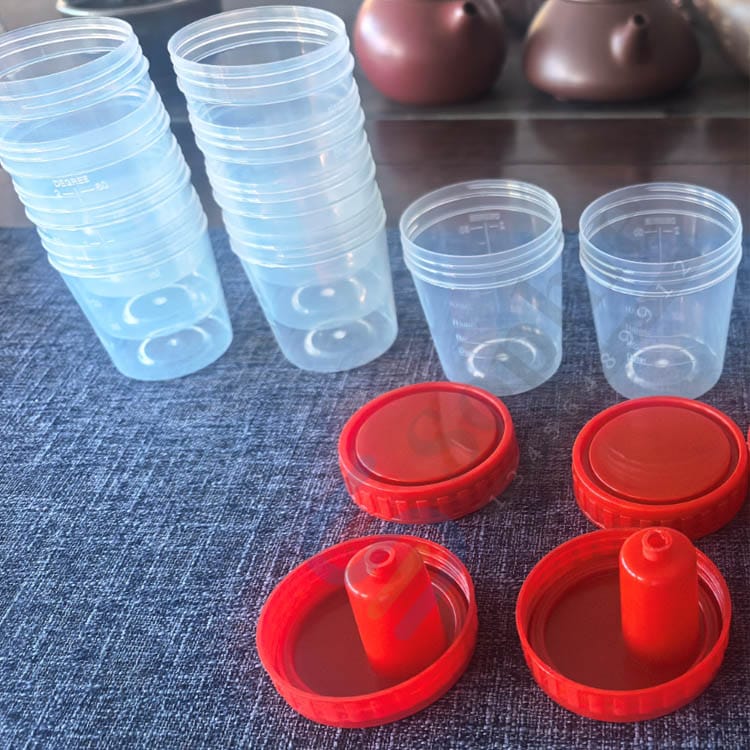

60mL Measuring Cup Mold for Turkey
When precision meets reliability, exceptional medical molds are born. With decades of specialized experience in medical-grade injection molding, we take pride in delivering cutting-edge solutions that empower our partners to lead their markets. Our latest 60mL measuring cup mold, meticulously engineered for our valued Turkish client, stands as a testament to our unwavering commitment to quality of 60ML urine measuring cup mould, innovation, and customer success.
Unrivaled Expertise in Medical Mold Manufacturing
Our journey in medical mold production spans years of dedicated research, technological advancement, and hands-on refinement. We understand that medical devices demand the highest standards of accuracy, safety, and consistency. Every mold we create undergoes rigorous design validation, material selection, and precision machining to ensure flawless performance in high-volume production environments. From concept to completion, our engineering team leverages state-of-the-art CAD/CAM systems, CNC machining centers, and EDM technology to deliver molds that exceed industry expectations.
The medical sector leaves no room for compromise. That’s why we specialize in producing molds for critical healthcare applications, including diagnostic containers, dosage measurement tools, and laboratory equipment. Our deep understanding of medical-grade polymers, regulatory requirements, and hygienic manufacturing processes positions us as a trusted partner for healthcare innovators worldwide.
60mL Measuring Cup Mold Steel Selection
| Component | Recommended Material | Hardness | Application |
|---|---|---|---|
| Cavity/Core | S136, 1.2083 Stainless Steel | HRC 48-52 | High mirror finish, corrosion resistance |
| Cavity/Core | 718H, 2738H | HRC 33-38 | Medium batch production |
| Cavity/Core | H13 | HRC 45-52 | Long lifespan requirements |
| Mold Base | S45C, S50C, P20 | HRC 17-30 | Standard mold bases |

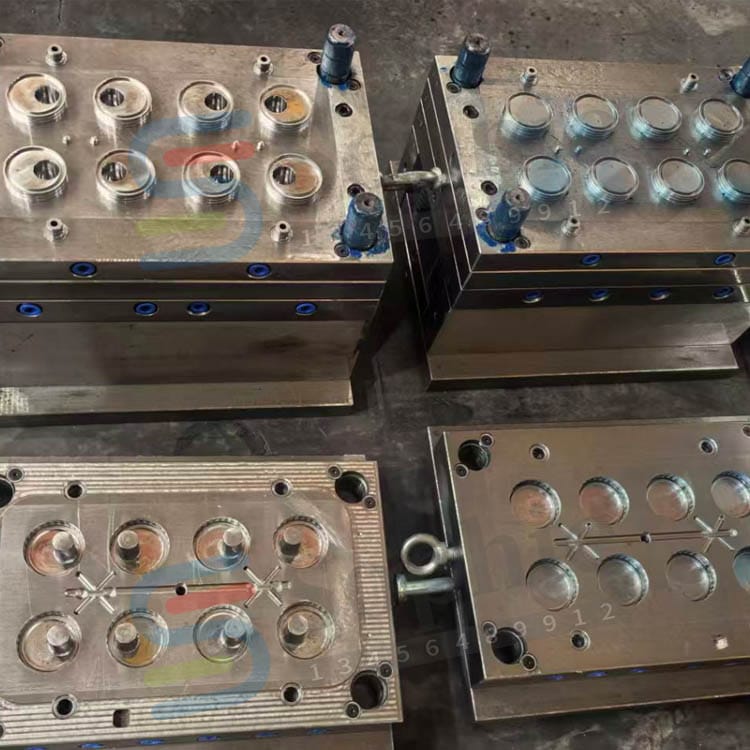

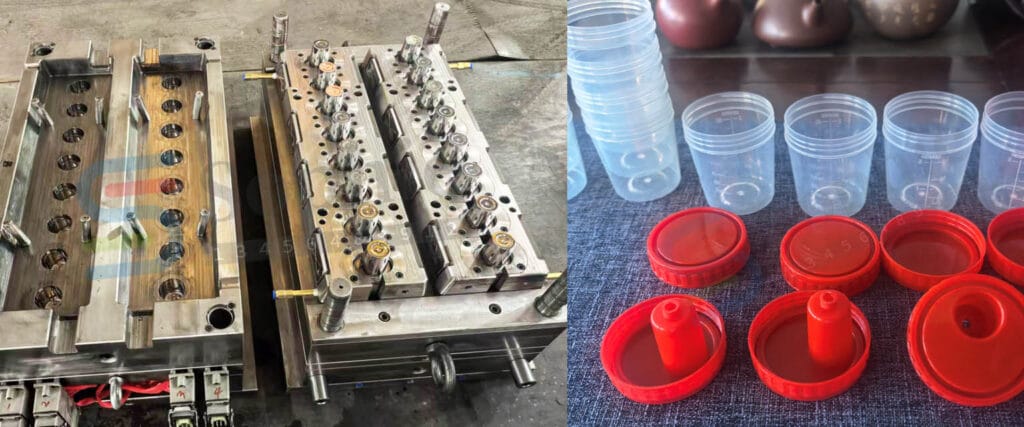

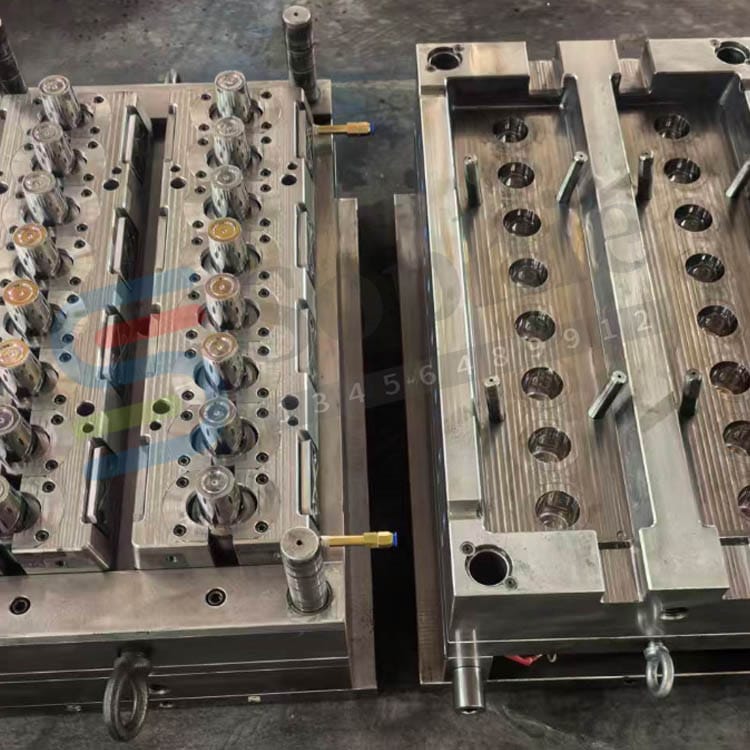

Engineering Excellence: The 60mL Measuring Cup Mold
This 60mL measuring cup mold represents the pinnacle of our technical capabilities, specifically developed to help our Turkish client capture market opportunities with confidence. The design incorporates advanced features that ensure consistent wall thickness, precise volume accuracy, and smooth surface finish—essential characteristics for reliable medical measurement devices.
We selected premium-grade mold steel with exceptional wear resistance and thermal stability, guaranteeing extended mold life and minimal maintenance requirements. The cooling system is optimized through sophisticated thermal analysis, reducing cycle times while maintaining dimensional stability across millions of production cycles. Every cavity is crafted with micron-level precision, ensuring that each measuring cup meets strict medical tolerance standards.
Our mold design also prioritizes operational efficiency. The automated ejection system ensures gentle part removal without deformation, while the streamlined runner system minimizes material waste. These thoughtful engineering choices translate directly into cost savings and enhanced productivity for our Turkish partner.
Key Design Considerations for 60mL Measuring Cup Mould
1. Precision Requirements
* Dimensional Tolerance: Within ±0.005mm, precision parts require ±0.002mm
* Parting Surface Fit: Zero flash design required, high precision mating surfaces to avoid overflow
* Surface Roughness: Mirror polishing must achieve Ra≤0.05μm (SPI-A1 grade)
2. Gating System
* Runner Selection: Hot runner system recommended (e.g., YUDO, Mold-Masters brands) to reduce waste and improve production efficiency
* Gating Design: Direct gate or spot gate to ensure uniform melt filling and avoid bubbles and weld lines
3. Cooling System
* Conformal Cooling: Utilizes 3D printing technology to achieve complex water channels, temperature difference controlled within ±2℃
* Sealing Design: Molds with 16 cavities or more require a sealing water design to ensure no leakage
4. Cavity Configuration
* Standard Configuration: 4/6/8/16/24/32/48/64 cavities available
* Mass Production Recommendation: 16-32 cavity hot runner molds, balancing efficiency and precision
Partnership for Market Success
We recognize that delivering a superior mold is only the beginning of a successful collaboration. Our Turkish client approached us with ambitious goals: to introduce high-quality 60mL measuring cups to their regional market, competing against established suppliers while building brand reputation for reliability and precision.
Working closely with their team, we provided comprehensive support throughout the project lifecycle. Our engineers conducted detailed feasibility studies, optimized the product design for manufacturability, and delivered the mold ahead of schedule. We also shared production expertise, helping their operators achieve optimal processing parameters from day one.
The result? Our Turkish partner now operates a robust production line capable of delivering medical-grade measuring cups that meet international quality standards. With our precision mold as their foundation, they have successfully penetrated local healthcare markets, secured contracts with medical distributors, and established themselves as a rising force in the regional medical supplies industry.
Your Trusted Medical Mold Partner
Our success with this Turkish project reinforces our position as a leading specialist in medical injection molds. We combine technical mastery with genuine partnership commitment, ensuring that every client receives not just a mold, but a competitive advantage.
If you seek a reliable partner to transform your medical product vision into manufacturing reality, we stand ready to deliver. From 60mL measuring cups to complex multi-cavity medical devices, our expertise turns precision engineering into your market success.
