Compression molding is a well-established and vital technique in the manufacturing industry, particularly for processing polymer composite materials with either thermoset or thermoplastic matrices. This method, sometimes referred to as matched-die molding, is used to create complex components with precise dimensions and properties. It involves forcing fiber-reinforced composite material to deform or flow within the mold cavity, and is commonly associated with the forming of composite materials with discontinuous fiber reinforcements at low (15%) to medium (50%) volume fractions. Widely applied in industries such as automotive, aerospace, and consumer goods, compression molding allows for the production of parts that require high precision and consistency, making it an indispensable process for many high-performance applications.

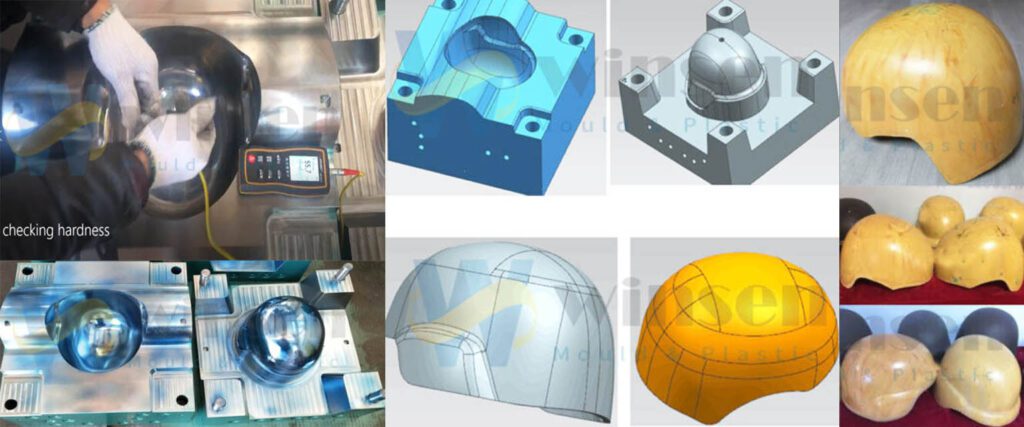

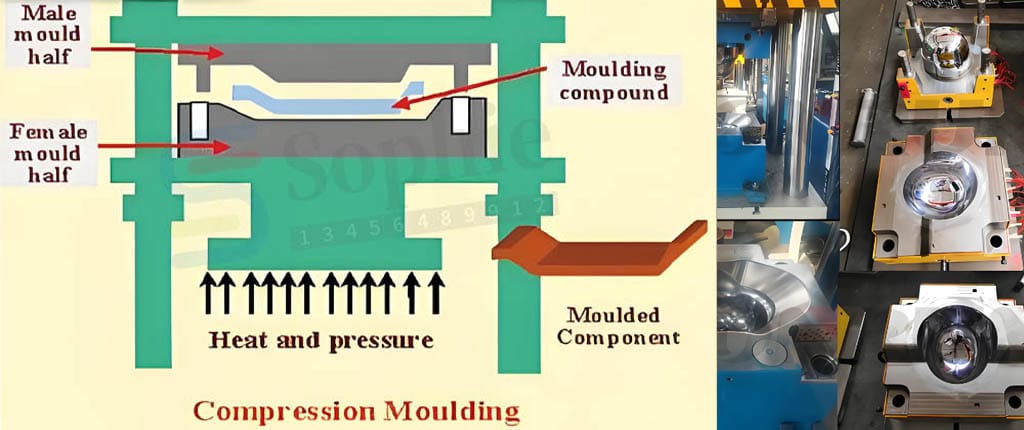

The compression molding process involves several key steps: material preparation, preheating, molding, curing, and demolding. Initially, the plastic material, often in the form of granules, preforms, or sheets, is preheated to enhance its flowability. It is then placed into the open mold cavity. As the compression molds closes, pressure is applied, forcing the material to conform to the mold’s shape. The material is maintained under pressure and heat until it cures. Finally, the mold is opened, and the solidified part is removed.
Advantages of Compression Molding
Despite its benefits, compression molding has limitations, such as:
- Cost-Effectiveness and Material Efficiency: Compression molding is one of the lowest-cost options for molding complex composite parts, and there is very little wasted material, making it ideal for working with expensive compounds.
- Control Over Parameters: The process allows tight control over the resin content, fiber orientation, and other main parameters, resulting in a finished product with excellent mechanical properties and high consistency.
- High-Volume Production: It is most effective for complex glass fiber-reinforced polymer products and is a high-volume, high-pressure process with a quick cycle time.
- Complex Part Design: Capable of producing complex shapes and designs that might be challenging with other molding methods.
- Excellent Surface Finish: Parts produced have a superior surface finish, reducing the need for post-processing.
- Material Versatility: Compatible with a wide range of thermoset plastics and composites, offering flexibility in material selection.
Limitations of Compression Molding
Compression molding offers several advantages, making it a preferred method for specific applications.
- Production Speed: The production speed is not high, making it less suitable for rapid production needs.
- Part Design Limitations: It is limited largely to flat or moderately curved parts with no undercuts.
- Product Consistency: It has less than ideal product consistency.
- Higher Initial Costs: The cost of designing and manufacturing a compression mold can be significant, making it less economical for low-volume production.
- Cycle Time: Depending on the material and part complexity, cycle times can be longer than other molding processes.
- Material Wastage: Excess material, known as flash, may need to be trimmed, leading to waste.
Key Considerations in Compression Molding
- Material Preparation: Thermosetting plastics are prone to moisture absorption and must be dried before molding to prevent defects.
- Mold Design: The design of a compression mold is critical, with components including the top (cavity) and the bottom (core), which must fit together accurately for uniform pressure and heat distribution.
- Materials for Mold Making: Common materials for making compression molds include steel, aluminum, and beryllium-copper alloys, chosen for their durability, thermal conductivity, and fine detailing capabilities.
- Process Parameters: The quality of the molded parts is influenced by material properties, mold dimensions, and process parameters such as temperature, pressure, and time.
Preparation Before Molding
Thermosetting plastics are prone to moisture absorption and must be dried before molding to prevent defects.
Pre-pressing the material into a uniform shape and weight can facilitate the molding process.
Molding Process
The process includes stages such as adding material, closing the mold,exhaust, curing, and demolding.
Molds and inserts, if used, must be preheated to ensure even heating and to reduce the molding cycle time.
Post-Processing
After demolding, the mold may require cleaning, and sometimes the molded parts need further treatment.
Influence of Parameters
The quality of the molded parts is influenced by the material properties, mold dimensions, and process parameters such as temperature, pressure, and time.
Temperature is crucial as it affects the flow and curing of the plastic within the mold.
Pressure ensures the material fills the mold cavity and removes any low molecular weight volatiles that could cause defects.
Time is the duration for which the material is subjected to heat and pressure to achieve the desired shape and cure.

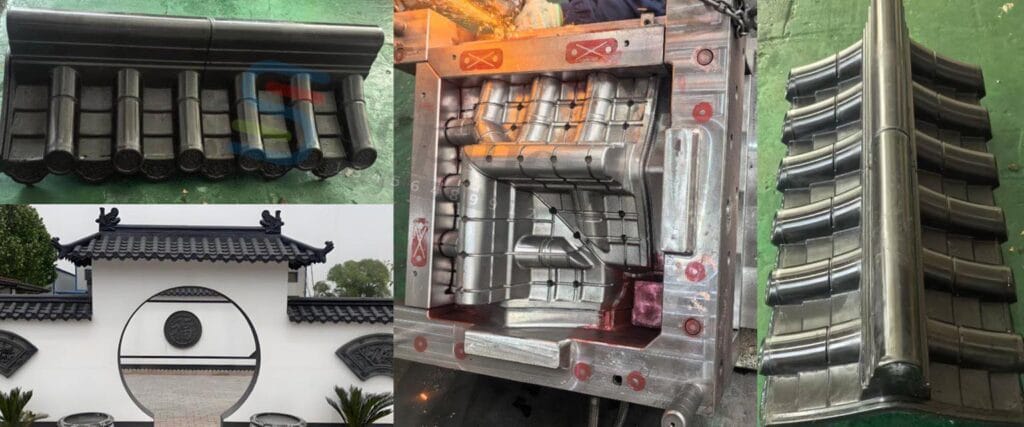

Applications of Compression Molding
Compression molding is used in the production of automotive brake pads, aircraft interior panels, kitchen countertops, and other complex components that require precise dimensions and properties. It is also used for incorporating a high proportion of natural fibers into epoxy resin, as seen in the production of bamboo fiber-reinforced composites. The process finds extensive application across various industries due to its versatility and efficiency, including the manufacturing of large, complex parts such as bumpers, dashboards, and door panels in the automotive sector, lightweight, high-strength components in aerospace, and precision parts in medical device manufacturing.
Recent Developments and Research
Recent studies have focused on the numerical simulation of the compression molding process and parameter optimization, aiming to improve efficiency and quality control. Research has also explored the use of compression molding for producing composites with natural fibers, such as flax and pineapple leaf fibers, highlighting the process’s versatility and environmental benefits.
Compression molding is a critical manufacturing process with distinct advantages and considerations. By understanding these aspects, manufacturers can optimize their production processes and create high-quality composite components for a variety of applications. This comprehensive overview providing a detailed understanding of the process, its advantages, limitations, and applications.
