High-precision injection molds, quality starts with details!
In the fiercely competitive manufacturing industry, high-precision injection molds are the key to ensuring product quality and improving production efficiency. Whether it is consumer electronics, medical devices, or automotive parts, micron-level errors may affect the functionality and market competitiveness of the product. This article will explore the core elements of high-precision injection molds and share how to achieve excellent quality through refined design, manufacturing, and control.

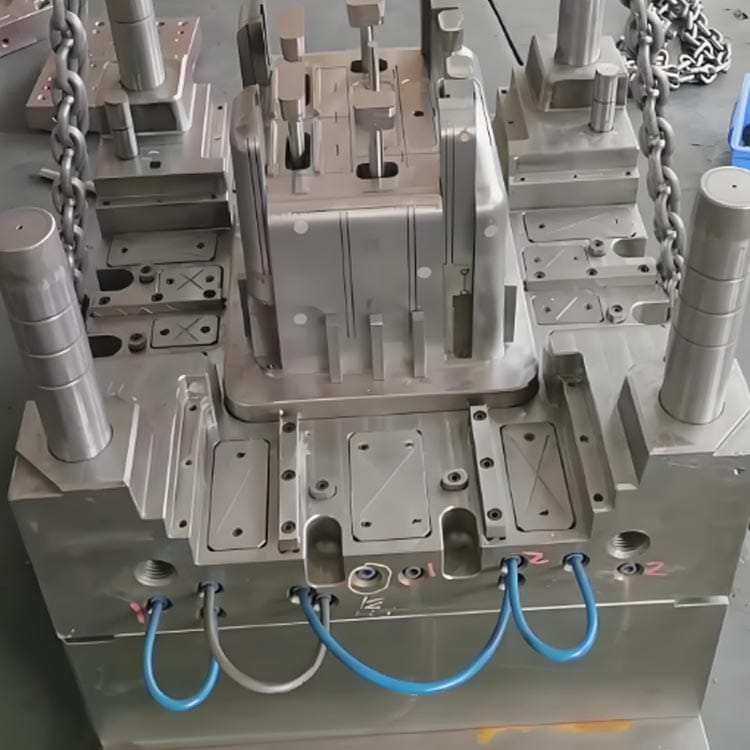

Dimensional accuracy: pursuit of ±0.01mm
The dimensional tolerance of high-precision molds is usually controlled within **±0.01mm**, which is suitable for products that are extremely sensitive to size, such as precision gears, optical lenses, and electronic connectors.
Common challenges: thermal expansion, processing errors, and fluctuations in material shrinkage.
Surface finish: Ra 0.05μm
Mirror polishing (Ra ≤0.05μm) can reduce product demoulding resistance and avoid surface defects such as scratches and flow lines.
Key applications: light guide plates, lenses, high-end housings and other exterior parts.
tructural stability: long-term accuracy
The mold steel must have high hardness (HRC 50+) and low thermal deformation coefficient to ensure that accuracy is maintained during more than 100,000 injection cycles.
Key details affecting precision of injection mold
aterial selection: ensuring quality from the source
Mold steel: S136, NAK80 and other stainless steels are suitable for high finish requirements; H13, SKD61 are suitable for high wear resistance scenarios.
Plastic properties: Different shrinkage rates (such as ABS 0.5%-0.7%, PP 1.5%-2.5%) need to be compensated in advance in the design.
Processing technology: every step of precision manufacturing
- CNC processing: five-axis linkage machine tools ensure the accuracy of complex surfaces.
- Electrical discharge machining (EDM): processing deep grooves, narrow slits and other areas that are difficult for CNC to reach.
- Wire cutting: achieve a cutting accuracy of ±0.002mm.
Temperature control: strict management of ±1°C
Mold temperature fluctuations will cause uneven shrinkage of the product, and a mold temperature controller + conformal cooling water channel is required to optimize heat dissipation.

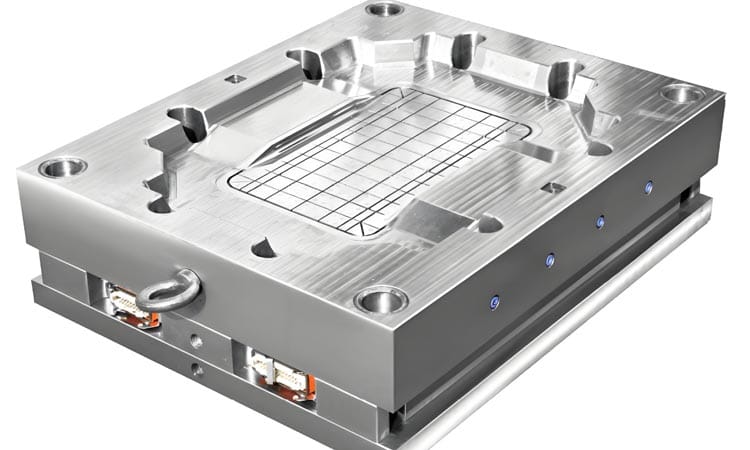

Typical applications of high-precision injection molds
- Medical industry: ±0.005mm, sterile surface, syringes, microfluidic chips
- Electronic industry: zero flash, high coaxiality of PIN pins, connectors, sensor housings
- Optical industry: Ra<0.02μm, no welding marks, camera lenses, light guide elements
- Automotive industry: large parts, full-size CPK≥1.67, lampshades, precision gearboxes

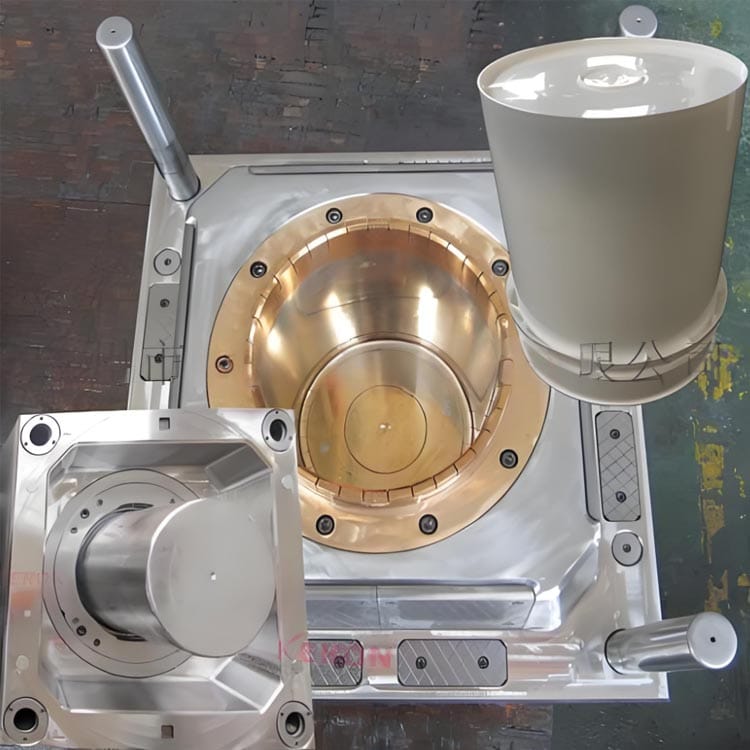

How to achieve “zero defect” high-precision production?
Design stage
Use **Moldflow** to predict filling, shrinkage and cooling problems.
Design redundant ejector pins and vacuum exhaust slots to avoid product deformation or air entrapment.
Product demand analysis: Select appropriate materials, such as HDPE or PP, according to the product’s use environment and load requirements.

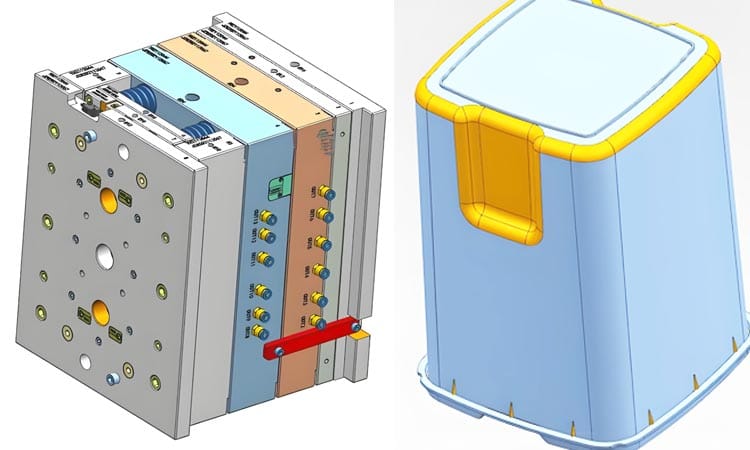

Mold modeling and simulation analysis: Use professional software (such as UG, Pro/E) for 3D modeling, and use Moldflow to simulate the flow, cooling and warping of molten plastics to optimize gate position, exhaust system and cooling scheme.
Design details: Ensure that the wall thickness of the mold is uniform, the demolding slope is moderate, and sharp corners are avoided. The gate and runner design should be wide and short, and the exhaust hole should be large enough to ensure that the air and gas in the melt are discharged in time.
Manufacturing stage
Three-dimensional measurement (CMM) monitors key dimensions throughout the process.
Use production-grade raw materials (rather than substitute materials) to verify stability during mold trials.
High-precision machining: high-precision CNC machining, EDM (electric spark machining) and other processes are used to ensure that the dimensional accuracy of key parts of the mold is within ±0.02mm.
Heat treatment process: quenching, nitriding, PVD coating and other treatments are performed on key components such as cores and cavities to improve the wear resistance, corrosion resistance and service life of the mold.
Assembly and debugging: After the mold is assembled, multiple rounds of mold trials are carried out, focusing on the matching degree of the parting surface, the cooling effect, the stability of the ejection system, and necessary detailed adjustments.
Production control
Recheck mold dimensions every 5,000 molds.
Establish an SPC (statistical process control) system to track key parameters.
Raw material selection: Select high-quality raw materials to ensure that their fluidity, shrinkage, and melt viscosity meet the requirements.
Injection molding parameter control: Accurately control parameters such as injection pressure, temperature, and injection speed to ensure uniform flow and cooling of the melt in the mold, and reduce defects such as bubbles and shrinkage.
Quality monitoring: Strengthen quality inspection and monitoring during the production process, discover and solve problems in a timely manner, and ensure the stability and consistency of product quality.
Precision determines value, details make excellence
Behind the high-precision injection mold is the perfect combination of material science, precision machining and process control. Only by striving for excellence in every detail can we continue to deliver products that exceed customer expectations.
